PIR Motion Sensor
Wireless PIR Motion Sensor for Home & Business Security
Protect your home, office or business with the SecureX PIR Motion Sensor SXM01, a wireless motion detection sensor designed to detect movement and instantly communicate with a compatible SecureX security system.
Featuring 110° wide-angle coverage, pet-friendly detection, adjustable sensitivity up to level 5 and wireless connectivity, the SecureX PIR Motion Sensor provides an additional layer of protection for residential and commercial properties.

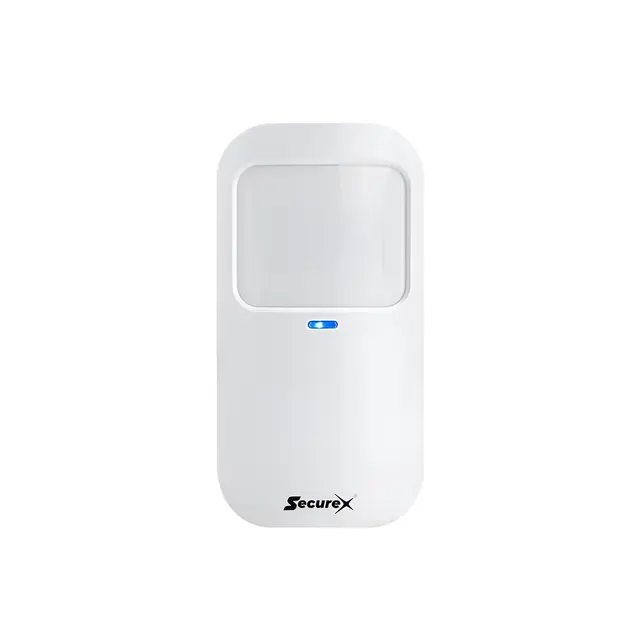

SecureX PIR Motion Sensor – SXM01

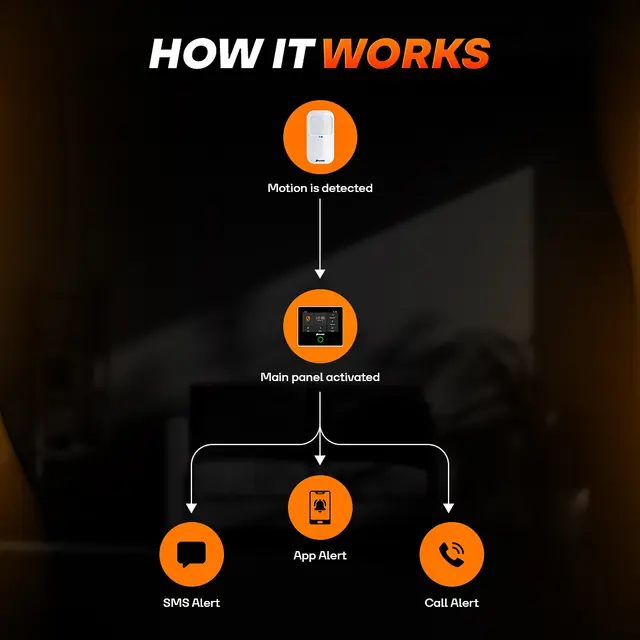

The SecureX SXM01 PIR Motion Sensor is a wireless security sensor that detects movement within its coverage area. When motion is detected, the sensor communicates with a compatible SecureX wireless control panel as part of a connected security system.
A PIR motion sensor can be used alongside door sensors, vibration sensors, sirens and other security devices to create a connected wireless alarm system for homes and businesses.

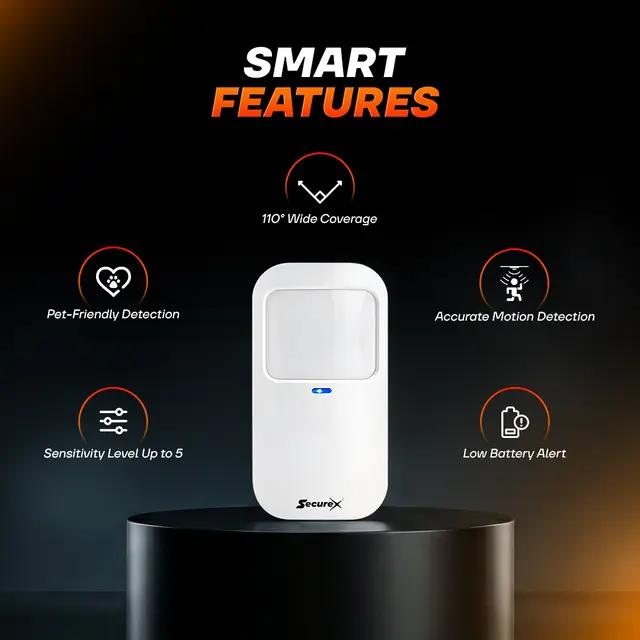

Key Features of Safety iii PIR Motion Sensor
- 110° Wide Coverage: Provides a broad detection angle for monitoring an indoor area.
- Pet-Friendly Detection: Designed with pet-friendly detection for suitable residential security applications.
- 5-Level Sensitivity: Sensitivity can be configured up to level 5 according to the installation requirement.
- Wireless Connectivity: Communicates wirelessly with compatible SecureX control panels, eliminating signal cabling between devices.
- Low-Battery Alert: Provides an alert when the sensor battery requires attention.
- 433 MHz Wireless Technology: Uses 433 MHz wireless communication with eV1527 parameters.
Safety iii Vibration Sensor Specifications
| Specification | Details |
|---|---|
| Brand | SecureX |
| Model Number | SXM01 |
| Product Name | PIR Motion Sensor |
| Product Type | Wireless PIR Motion Sensor |
| Detection | Motion Detection |
| Coverage | 110° Wide Coverage |
| Pet Detection | Pet-Friendly Detection |
| Sensitivity | Up to Level 5 |
| Network | 433 MHz |
| Wireless Parameters | 433 MHz, eV1527 |
| Quiescent Current | ≤15 µA |
| Alarm Current | ≤15 mA |
| Operating Temperature | -10°C to 50°C |
| Relative Humidity | 95% (No Condensation) |
| Colour | White |
| Place of Origin | India |
